D3DQA Quick-Acting Watertight Door with Mechanical SealsFLOOD PROTECTION WITH THE TURN OF A HANDLE

D3DQA | Quick-Acting Watertight Door with Mechanical Seals

This watertight door is ideal for openings with frequent traffic that need to be sealed quickly for flood mitigation.

Because these doors are engineered with mechanical seals, no air pressure or power is needed and maintenance requirements are minimal.

Every D3DQA is custom built to exacting dimensions for new or existing construction to maximize flood mitigation. For existing openings, frame is mounted to building with expansion anchors; for new construction, the frame is poured in place.

COMPLETE FLOOD PROTECTION WITH THE TURN OF A HANDLE

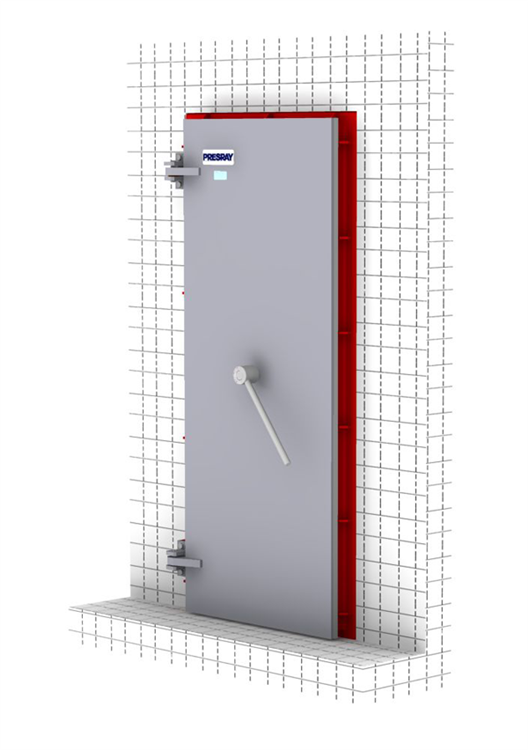

Simply closed the door and turn the handle ¼ turn to securely seal the door on all four sides. The standard model protects to 25’ head (higher heads are available).

  • The D3DQA is ideal for Water Treatment Facilities, Sewage Treatment Plants and Pumping Stations; as well as mechanical and equipment rooms in any critical facility.

  • Size

    • Custom built to match opening size

    Panel

    • ASTM A36 Structural Steal Plates and Shapes (Stainless Steel and 6061-T6 Aluminum plate available)

    Seals

    • Presray type 25 durometer, fully-molded neoprene (other materials are available for special environments)

    Hardware:

    • Hinges: Bronze, oil-impregnated thrust bearing with stainless steel pins

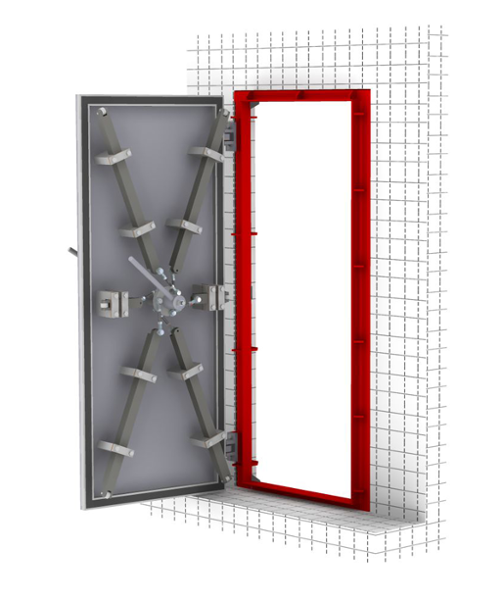

    • Latch System: Lever actuates minimum of six arms with stainless steel rollers – adjustable for stroke length and position (Handwheel optional)

    Finish

    • Primed with rust inhibitive, lead free, red primer

  • Check Fact Sheet here.
