CG22 | Lightweight Flood Panel with Mechanical Seals

This flood barrier is designed for windows, louvers, hatchways, and other openings in which either three or four sides of flood prevention panels are needed. If only used during high water events, the panels can be easily removed for storage.

Because these flood barriers are engineered with compression gaskets, no air pressure or power is needed; and maintenance requirements are minimal.

Every CG22 is custom built to exacting dimensions for new or existing construction for maximum flood prevention.

SIMPLE, RELIABLE FLOOD PROTECTION

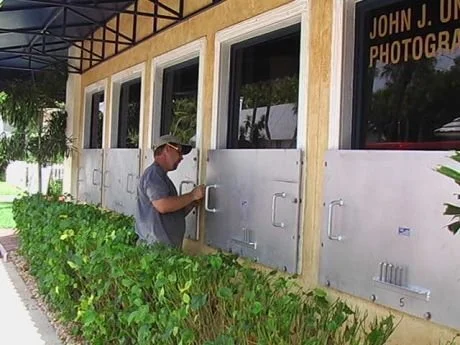

When rising waters threaten, simply remove the panel from storage, set it in the opening jamb and tighten screws into threaded inserts around the perimeter with a wrench. One person can usually handle panels up to six square feet.

It is recommended that a conversion frame be installed to ensure a smooth and even sealing surface. However, it is possible to attach the panel without a conversion frame if such conditions exist.

  • This sturdy but lightweight flood panel is ideal for windows and other openings in commercial or industrial buildings. It is well suited for hatchways that are infrequently accessed in water treatment facilities, sewage treatment plants and pumping stations.

  • Size

    • Custom built to match opening size

    Panel

    • 6061–T6 aluminum plate (steel or stainless steel optional)

    Frame

    • Low carbon steel (stainless steel optional)

    Seals

    • Presray type 25 durometer, fully-molded neoprene (other materials are available for special environments)

    Hardware

    • Attachment Bolts: Stainless Steel

    • Handles: Welded on face of panel for ease of handling

    Finish

    • Panel: Bright aluminum

    • Frame: Primed with rust inhibitive, lead free, red primer

  • Check Fact Sheet here.

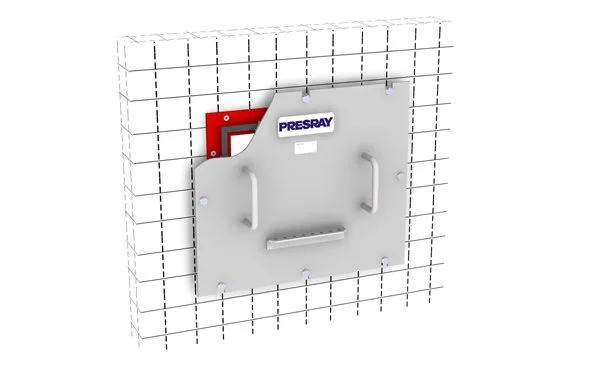

CG22 Lightweight Flood Panel with Mechanical Seals
